Manure Alley Scrapers

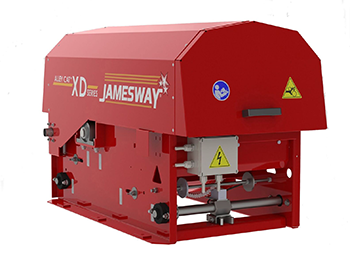

XD-260
Used in smaller to medium sized barns.
- 26” diameter, 18” wide and ¼” thick drum
- Maximum stroke of 230 feet using 3/8” cable
- Maximum stroke of 165 feet using ½” cable
- #80 roller chain

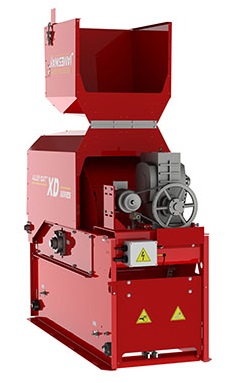

XD-480
Recommended in medium to large sized barns up to 650 feet long.
- 48” diameter, 18” wide and 5/16” thick drum
- Maximum stroke of 440 feet using 3/8” cable
- Maximum stroke of 325 feet using ½” cable
- #80 roller chain

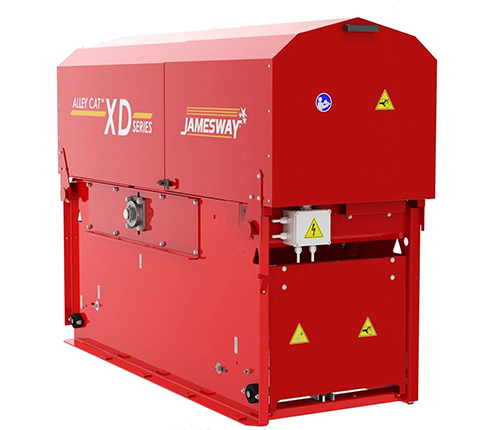

XD-600
Used in the largest barns up to 2,350 feet long.
- 60” diameter, 24” wide and 3/8” thick drum
- Maximum stroke of 600 feet using ½” cable
- #100 roller chain
